Bomar Workline 510.350 DGH

This semiautomatic bandsaw, designed for double-sided mitre cuts and for cutting material up to 350 mm in diameter, provides high quality at an affordable price.

The excellent cutting power results from these features: a hardmetal band precision guide, an arm joint laid in slide bearings, a 34 mm high saw band, and a synchronous running brush for chips disposal.

Material clamping and arm downfeed are controlled hydraulically, material feed is controlled manually.

The whole work cycle is completed at the press of the Start button: the material is clamped, the saw band starts up, cutting is carried out, the arm is raised to the default position, and the vice is opened.

After switching the machine to the manual mode, all functions may be controlled separately. Thanks to a large angle scale located within the operator’s field of vision it is easy to set the required angle precisely.

The saw band speed is set on the ergonomic control panel located in the front of the machine.

The basic equipment of the machine includes a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity.

Standard equipment of Workline semiautomatic machines includes automatic downfeed pressure regulation dependent on the resistance of the processed material.

Key features

  • Hardmetal saw band precision guide
  • Material clamping and arm downfeed are controlled hydraulically
  • Well-arranged angle scale

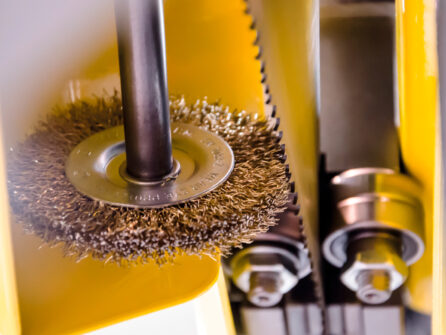

  • Saw band cleaning brush

Description

Cutting parameters

... ... ...
350 510×350 350
45°R 350 400×100 340
45°L 350 415×100 350
60°R 250 260×100 240
60°L 270 280×100 260



Technical Specification
Working mode: manual
Machine type: Horizontal bandsaw
Cut: Mitre cut
Mitre cuts range:  0° – 60°
Drive: 3 kW, 3×400 V/50 Hz
Saw band speed: 20 – 120 m/min.
Saw band dimensions: 4 780x34x0,9 mm
Material loading height: 761 mm
Shortest remnant length. 60 MM
Machine Dimensions
Length: 2 500 mm
Width: 1 070 mm
Height: 1 450 mm
Weight: 685 kg

Additional information

Feed

Manual DG, Hydraulic Semi-Automatic DG

Handling System T

Highly flexible handling solution for feeding medium weight materials. With the bearing capacity up to 600 kg and a wide range of accessories and connection parts of BOMAR band saws, System T is an ideal partner for handling materials in your workshop. Thanks to the default lengths of 2 and 3 m, the roller tracks are flexible and may be adjusted to any environment.

Handling System X/XP

The new X/XP handling system offers unprecedented flexibility for tailoring a handling syste

m to individual needs and conditions. Load capacities and automation levels can be adjusted with perfect flexibility and modified at a later time. Besides the roll conveyor in a regular and propelled version, the X system comprises a rich array of options, from vertical rollers, to length measuring systems all the way to cross conveyor units and shifting devices. The load capacity can be customized by the number of rollers and support feet used. The roll conveyor’s feed profile even allows varying roller and foot distances on the same roll conveyor unit. When needed, additional rollers and/or support feet can be installed at any time.
