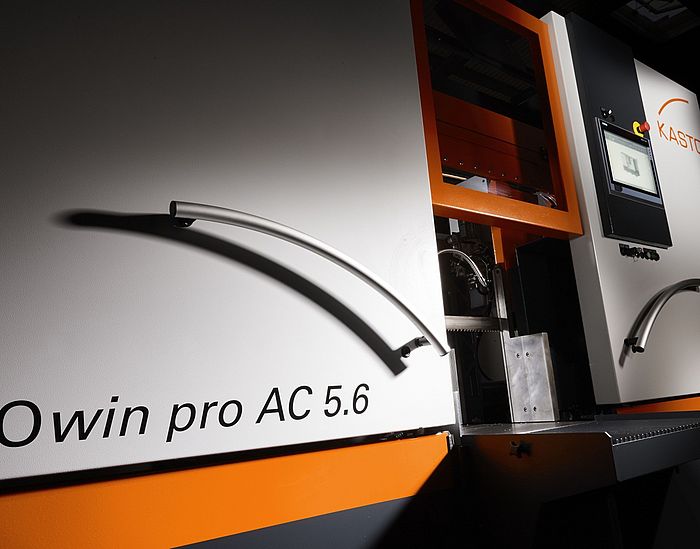

KASTO win pro AC 5.6

KASTOwin pro AC 5.6

The high-performance band saw KASTOwin pro AC 5.6 is optimized for solid material, tubes and profiles. Users will appreciate its short cutting times, long tool life and intuitive operation. The fully automatic machine is optimized for bimetallic and carbide blades and can be applied in areas such as the steel trade, steel production, forging mills, machine manufacturing and the automotive industry. Besides helping to reduce tool costs, it significantly increases production speed and efficiency. Depending on the type of blade, cutting times can be reduced by 50 percent and more. The KASTOwin pro is designed for a wide range of applications and delivers top performance with both carbide and bimetallic saw blades. An important feature is its innovative feed system, which is controlled by means of two ball screw spindles, each with a servo drive for precise, infinitely variable control. The KASTOwin pro AC 5.6 also has a retraction unit on each side for lifting the blade from the surface when the saw head moves back. This makes for particularly efficient, exact sawing with minimal tool wear. In addition, this fully automatic saw comes with EasyControl, an advanced control unit. It is easy to use and reduces idle times in automatic operation for maximum cutting performance. All parameters can be optimized to match the type of blade being used.

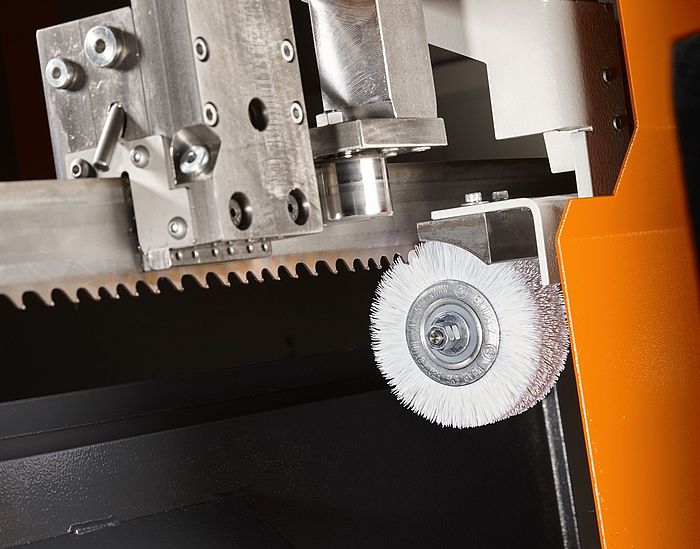

  • Optimal cleaning of saw blade by electrically driven, self-adjusting chip removal brush
  • Automatic band guide arm adjustment to material width
  • Effective use of material down to a 35 mm short remnant
  • New layout: The drive unit and sensor are separate from the working area – ensuring reliable and trouble-free operation
  • Good accessibility despite of compliance with the current safety standard
  • Wear costs can be reduced up to 50% compared to the previous machine
SKU: 6.KASTO.C.KASTOWINproAC5.6 Categories: ,

Description

Technical data

Cutting range
Cutting range 560 mm
Smallest dimension to be cut 10 mm
Shortest length of residual piece, automatic operation 35 mm
Shortest length of cut-off piece 10 mm
Cutting range flat height x width 560 x 560 mm
Mass and weights
Length 1.650 mm
Width 3.300 mm
Height 2.280 mm
Total weight 4.300 kg
Material support hight 700 mm
Performance characteristics
Connected load 15,0 kW
Saw motor, frequency controlled 11,0 kW
Cutting speed infinitely variable 12 – 150 m/min
Material feed length – individual feed 500 mm
Multiple feed 9.999 mm
Saw blade dimensions 7.067 x 54 x 1,6 mm
Cutting feed electrically adjustable via two ball bearing spindles
Material feed ball bearing spindle
Material clamping hydraulic
Saw blade cleaning By electrically driven, self-adjusting, easy to exchange plastic brush
