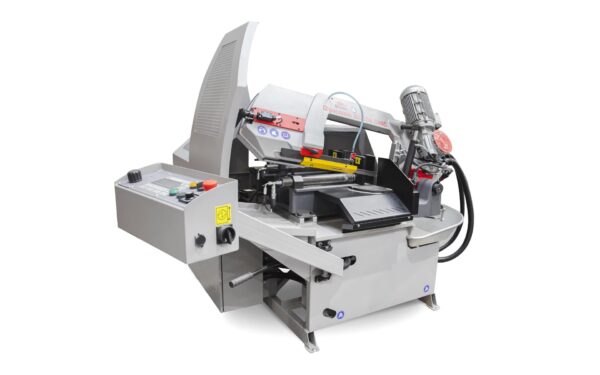

The automatic Ergonomic band saws always feature high cutting output. The new GANC series of saws ts in among them well with its cutting output and will gain you over with a series of innovative solutions.
In addition to the synchronously driven chip brush and rotary control panel, the distinctive novelties of this series particularly include stepless adjustment of the saw band speed within the range of 20 to 120 m/min.
Simple processes, quick cycle times and short residual pieces make this machine an ideal partner for series production.
Thanks to the VisualDialog control system, operation is executed in short steps on the individual screens, and it is also possible to cut small series economically.
Key features
 |
 |
 |
 |
| 0° | 258 | 320×100 | 250 |
| 45°R | 210 | 210×100 | 195 |
| 60°R | 135 | 135×100 | 110 |
| Working mode: | automatic |
| Machine type: | Horizontal bandsaw |
| Cut: | Mitre cut |
| Mitre cuts range | 0°- 60° |
| Drive: | 1,5 kW, 3×400 V/50 Hz |
| Saw band speed GAC | 40 – 80 m/min. |
| Saw band speed GAC-F | 20 – 120 m/min. |
| Saw band dimensions: | 2 910 x 25 (27) x 0,9 mm |
| Material loading height: | 765 mm |
| Shortest remainder length: | 150 mm |
| Smallest sawing diameter: | Ø 5 mm |
| Feed | Manual DG, Hydraulic Semi-automatic DGH |
|---|
Micro-spray-systemFor ideal cutting of pipes and profiles, the micro-spray unit applies a grease film on the teeth points and lateral sides of the saw band.
Laser linerThe laser unit copies the exact line in the saw band axis to the material. Laser liner allows precise adjustment of the marked material.
Additional cooling supplyAdditional coolant supply is used for extra wide materials and wherever normal cooling would not be enough.
Hydraulic bundle clamping deviceDevice for clamping materials in layers and bundles with the use of an additional vertical clamping unit.
Vice pressure regulationThe pressure regulation of both cylinders is centrally preset, firstly to be avoided of the deformations by thin-walled pipes and profiles.
Workspace lightingA LED lamp for lighting the workspace, adjustable and mounted on the flexible arm.
TenzomatA precise measuring tool for the control of the saw band tension when a new band is installed.
Pistol for machine cleaningTool for fast and easy cleaning of the machine from chips and burrs.
