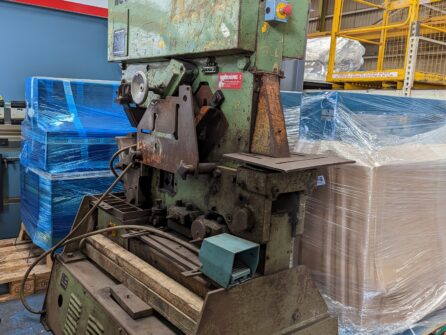

SUNRISE MODEL IW-165SD – Year 2000

TECHNICAL DATA

Punching
Punching pressure 165 tons
Punch capacity Ø 37 x 32 mm
Diameter x thickness Ø 50 x 24 mm
Throat depth 510 mm
Channel flange punch 180 mm
Max. stroke length 100 mm
Cycles/min. (20 mm) 29
Working height up to die 1050 mm
Flat Shearing
Flat bar shear 760 x 20 mm
Width x thickness 400 x 30 mm
Blade length 770 mm
Angle flange trim 120 mm
Working height 920 mm
Angle Shearing
At 90° shearing 205 x 205 x 20 mm
At 45° mitre shearing 80 x 80 x 10 mm
Working height 1185
Bar Shearing
Round bar shear Ø 60 mm
Square bar shear 60 x 60 mm
Channel shear 203 mm*
H beams shear 203 mm*
Working height 1370 mm
Notching
Rectangular notcher (W x D x T) 63.5 x 90 x 16 mm
Vee notcher (Side x Side x T) 105 x 105 x 16 mm*
Large vee notcher (Side x Side x T) 145 x 145 x 13 mm*
Working height 920 mm
Special Tooling
Single vee press brake 250 x 20 mm*
Multi vee press brake 700 x 5 mm*
Angle bending 102 x 13 mm*
Pipe notching Ø114 mm*



Categories: ,

Description



SPECIFICATION
Electric power 20 HP
Net weight 4950 kg approx.
Gross weight 5250 kg approx.
Machine dimension (L x W x H) 2720 x 890 x 2000 mm approx.
Packing dimension (L x W x H) 2990 x 1050 x 2280 mm approx.
