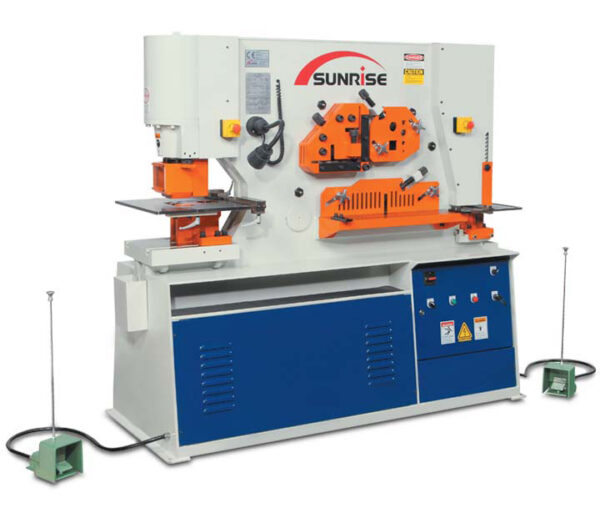

Sunrise Double Cyclinder Ironworker

The double cylinder “S/SD” series are in the Sunrise tradition of well engineered ironworkers built for high power, quality, and reliability. These ironworkers have two control foot pedals, and separate operations can be safely performed simultaneously. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke and deep throat enable mounting a wide range of special equipment. The large punching base with the “T-slot” mounting provides a solid base for securing the punching tooling, as well as a wide range of optional and custom designed tooling.

SKU: 6.SR.C.IW Categories: Ironworker, Sunrise

Description

Model Variations

Model	IW-60S IW-60SD	IW-80S IW-80SD	IW-100S IW-100SD	IW-125S IW-125SD	IW-165SD
Punching
Punching Force	60 Ton	80 Ton	100 Ton	125 Ton	165 Ton
Punch Capacity	ø22 x 20	ø26 x 22	ø28 x 26	ø33 x 27	ø37 x 32
(Diameter x Thickness)	ø50 x 9	ø50 x 12	ø50 x 15	ø50 x 18	ø50 x 24
Throat Depth (S)	310	310	310	310	–
Throat Depth (SD)	510	510	510	510	510
Max. Stroke Length	100	100	100	100	100
Cycles / Min. (20mm stroke)	30	29	28	28	29
Working Height Up to Die	1010	1050	1044	1069	1050
Angle Shearing
At 90° Shearing	130 x 130 x 12	150 x 150 x 12	150 x 150 x 15	150 x 150 x 15	200 x 200 x 20
At 45° Miter Shearing	65 x 65 x 8	75 x 75 x 9	75 x 75 x 9	75 x 75 x 9	75 x 75 x 9
Working Height	1115	1165	1216	1185	1185
Flat Shearing
Flat Bar Shear	350 x 15	460 x 15	610 x 16	610 x 18	760 x 20
(Width x Thickness)	240 x 20	300 x 20	400 x 20	400 x 25	400 x 30
Blade Length	360	465	620	620	770
Angle Flange Trim	100	100	100	100	120
Working Height	910	926	954	920	920
Bar Shearing
Round Bar Shear	ø40	ø45	ø45	ø50	ø60
Square Bar Shear	38 x 38	45 x 45	45 x 45	50 x 50	60 x 60
Channel Shear (H x B)	125 x 65*	150 x 75*	150 x 75*	150 x 75*	200 x 90*
I Beam Shear (H x B)	–	150 x 75*	150 x 75*	150 x 75*	200 x 100*
Working Height	1220	1270	1332	1310	1370
Notching
Rectangular Notcher (W x D x T)	50.8 x 90 x 9	50.8 x 90 x 12	63.5 x 90 x 12	63.5 x 90 x 13	63.5 x 90 x 16
Vee-Notcher (Side x Side x T)	90 x 90 x 10*	90 x 90 x 12*	105 x 105 x 12*	105 x 105 x 13*	105 x 105 x 16*
Working Height	910	926	954	920	920

Special Tooling

Model	IW-60S IW-60SD	IW-80S IW-80SD	IW-100S IW-100SD	IW-125S IW-125SD	IW-165SD
Large Vee-Notcher (Side x Side x T)	145 x 145 x 8*	145 x 145 x 10*	145 x 145 x 12*	145 x 145 x 12*	145 x 145 x 12*
Single Vee Press Brake (W x T)	250 x 12*	250 x 12*	250 x 15*	250 x 20*	250 x 20*
Multi Vee Press Brake (W x T)	500 x 5*	500 x 5*	700 x 5*	700 x 5*	700 x 5*
Angle Bending	100 x 100 x 7*	100 x 100 x 7*	100 x 100 x 13*	100 x 100 x 13*	100 x 100 x 13*
Pipe Notching	ø100*	ø100*	ø100*	ø100*	ø100*

* : Optional Tooling

Other Specifications

Model	IW-60S IW-60SD	IW-80S IW-80SD	IW-100S IW-100SD	IW-125S IW-125SD	IW-165SD
Electric Power (HP)	7.5 HP	10 HP	10 HP	15 HP	20 HP
Net Weight (Appr.) (S)	1780 kg	2120 kg	2880 kg	3300 kg	–
Net Weight (Appr.) (SD)	2060 kg	2550 kg	3340 kg	3900 kg	5180 kg
Gross Weight (Appr.) (S)	1890 kg	2250 kg	3050 kg	3530 kg	–
Gross Weight (Appr.) (SD)	2230 kg	2760 kg	3600 kg	4160 kg	5480 kg
Machine Dimension (Appr.) (S) (L x W x H)	1700x800x1710	1830x820x1760	2100x860x1810	2170x1030x1850	–
Machine Dimension (Appr.) (SD) (L x W x H)	2070x800x1710	2220x820x1730	2460x860x1810	2490x1030x1850	2710x1070x2010
Packing Dimension (Appr.) (S) (L x W x H)	1930x900x1940	2070x940x1960	2350x950x2100	2430x1150x2070	–
Packing Dimension (Appr.) (SD) (L x W x H)	2290x900x1990	2450x960x1985	2700x1000x2060	2730x1150x2100	2940x1210x2270
