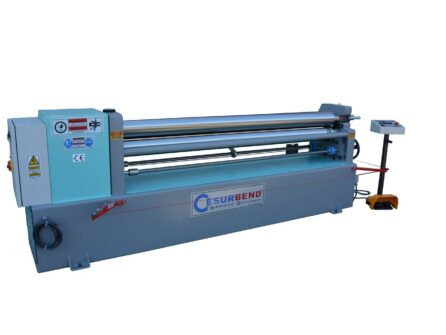

Description
-Top and bottom rolls powered by a single Gearbox and gear system(RM)
-SAE 1050 Quality Certificated Steel Rolls with high tensile strength
-Cast Iron Main Frames
-Mobile Control Panel by foot pedal on MR models
-Conical Bending Device
-Manuel dropend
-Wire grooves at the end of the rolls
-Precision Bending with Brake Motor on MR models
-Built according to EC Safety Directives (CE Mark)
-User’s Manual
*Optional
–Motorised back roll adjustment
–Digital readout for rear roll
–Induction hardened rolls
–Optional variable speed system
–Optional full closed sheet covers
Technical Information
| M
odel |
MRM 1050×90 |
MRM 1270×90 |
MRM 1550×90 |
MRM 2050×95 |
MRM 1050×70 |
MRM 1270×75 |
MRM 1550×70 |
MRM 2050×75 |
|---|---|---|---|---|---|---|---|---|
| Working Length(mm) |
1050 | 1270 | 1550 | 2050 | 1050 | 1270 | 1550 | 2050 |
| Bending Capacity (mm) |
3.3 | 2.5 | 2.2 | 1.5 | 1.5 | 1.5 | 1.0 | 1.0 |
| Rolls Diameters (Ømm) |
90 | 90 | 90 | 95 | 70 | 75 | 70 | 75 |
| Rolling Speed(m/dk) |
6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Motor Power(kw) |
1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Length (mm) |
1750 | 1950 | 2250 | 3030 | 1300 | 1550 | 2000 | 3030 |
| Width (mm) |
850 | 850 | 850 | 850 | 850 | 850 | 850 | 850 |
| Height (mm) |
1130 | 1130 | 1130 | 1130 | 1100 | 1100 | 1100 | 1100 |
| Weight (kg) |
500 | 570 | 600 | 635 | 320 | 460 | 450 | 545 |
