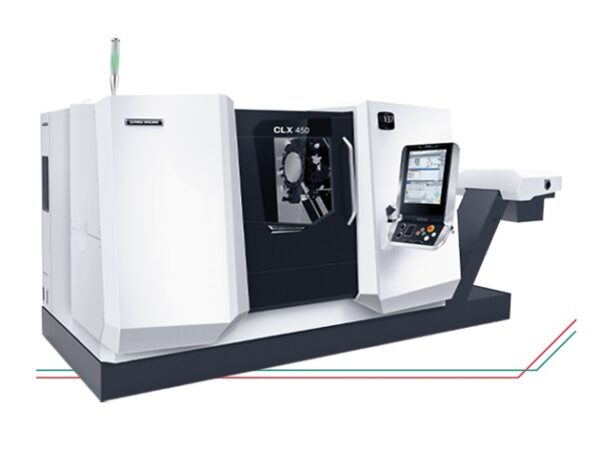

CLX 450

The new benchmark in universal turning – with direct measuring system (X or X/Y) and IoTconnector in standard

Max. turning diameter                                                                                           400 mm
Max. work piece length with a tailstock (can be machined)                          800 mm
Max. chuck size                                                                                                       315 mm
Max spindle motor speed                                                                                     4,000 rpm
Drive power rating (100% DC)                                                                            17 kW (AC)
Max. bar capacity diameter                                                                                  80 mm
SKU: DMGMoriCLX450 Categories: , , ,


Complete machining of complex parts thanks to sub spindle and Y-axis

  • Highly dynamic spindle drive 16,5 kW (40% DC) and 168 Nm (40% DC) with max. speed up to 5.000 rpm
  • sub spindle as integrated motor spindle ISM 36 with power 16,2 kW (40% DC), 62 Nm (40% DC) and max. speed up to 5.000 rpm with the possibility for rear-face machining.
  • Y axis with travel range ± 40 mm for superior milling operations, i.e. for complete lateral surface machining

More efficiency for machining with a bar feeder

  • Bar capacity ø51 mm in standard (ø65 as an option)
  • Optional part catcher for parts up to ø65 x 200 mm and weight 3 kg
  • Optional robot interface according to DMG MORI standard compatible with most bar feeders

Compact design with large working area for the machining of customized parts

  • Machining of parts with diameter up to ø320 mm
  • Travel in Z axis 830 mm
  • Small foot print 6,7 m2

Direct measuring system from now on in standard

IoTconnector for digitized and connected production processes

  • DMG MORI NETservice and MESSENGER preinstalled
  • Specially preconfigured for your machine prior to delivery
  • Integrated firewall with automatic updates guarantees maximum protection


3D controls with the unique 19″ SLIMline multi-touch control panel and SIEMENS or 19″ SLIMline touch control panel and FANUC.

  • Create your own individual solution!
  • 19″ DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation
  • 19″ DMG MORI SLIMline touch control panel and FANUC for 3D simulation with easy contour verification
  • DMG MORI SMARTkey: Personalized with 8 GB additional storage

Work Area

Max. swing diameter

700 mm

Max. turning diameter

400 mm

Max. work piece length with a tailstock (can be machined)

800 mm

Max. chuck size

315 mm

Main spindle

Max spindle motor speed

4,000 rpm

Drive power rating (100% DC)

17 kW (AC)

Torque (100% DC)

283 Nm

Spindle diameter in the front bearing

130 mm

Max. bar capacity diameter

80 mm

Turret (standard)

Tool holder according to VDI / DIN 69880

40 + 6 BT

Number of driven tools / Max. speed

12 / 4000 n/rpm

Drive power rating (100% DC)

3 kW (AC)

Turret slide

Rapid traverse rate X- / Y- / Z-axis

30 / 22,5 / 30 m/min


Machine weight

6,300 kg
