CTX 2500

Large Turning centre Capable of Powerful Machining of Large-diameter Shafts

Max. turning diameter
920 mm
Max. work piece length with a tailstock (can be machined)
2,000 mm
Max. chuck size
610 mm
Max spindle motor speed
1,000 rpm
Drive power rating (100% DC)
55 kW (AC)
Max. bar capacity diameter
116 mm
SKU: DMGMoriNLX6000 Categories: , , ,

Description

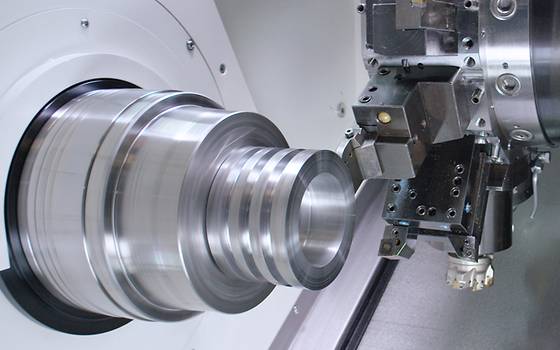

HIGHLIGHTS

Newly revised 12 station turret with 6,000 rpm and VDI interface as standard

  • High Precision Turret for the highest accuracy with 6,000 rpm, 10 kW and 36 Nm
  • Main spindle with 4.000 rpm  and 525 Nm in standard and 3.500 rpm and 1.194 Nm optionally available

Complete machining by optional counter spindle and star turret

  • Counter spindle with up to 5,000 rpm, 32 kW and 360 Nm
  • torqueDRIVE turret for powerful machining with 6,000 rpm, 23,5 kW and maximum torque of 85 Nm
  • speedDRIVE Revolver for the highest demands with 12,000 rpm, 20 kW and a maximum of 56 Nm of torque optional available

Machining of workpieces up to Ø 430 mm turning diameter and up to 1284 mm turning length

  • Circular diameter up to 700 mm
  • Bar machining of workpieces up to Ø 104 mm

Outstanding robustness and maximum machine rigidity

  • Maximum stability and long-term accuracy
  • Guideways with 80mm width for higher vibration damping performance and dynamic stiffness
  • Coolant circulation for all cast components for a uniform temperature shift

CONTROL & SOFTWARE

CELOS

Integrated digitization of the DMG MORI machines & the shop floor:

  • CELOS Machine: APP-based user interface with access to all production-related information
  • CELOS Manufacturing: 27 CELOS APPs for the optimal preparation & processing of orders
  • Digital Factory: Continuous digital workflows from planning to production & service





Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

Work Area

Max. swing diameter

710 mm

Max. turning diameter

430 mm

Max. work piece length with a tailstock (can be machined)

1,284 mm

Max. work piece length with a tailstock (can be machined Type 700)

734 mm

Max. work piece length with a tailstock (can be machined Type 1250)

1,284 mm

Max. chuck size

400 mm

Main spindle

Max spindle motor speed

4,000 rpm

Drive power rating (100% DC)

22 kW (AC)

Torque (100% DC)

410 Nm

Spindle diameter in the front bearing

140 mm

Max. bar capacity diameter

104 mm

Counter spindle (Option)

Max spindle motor speed

7,000 rpm

Drive power rating (100% DC)

8 kW (AC)

Torque (100% DC)

50 Nm

Spindle diameter in the front bearing

85 mm

Turret (standard)

Tool holder according to VDI / DIN 69880

12

Number of driven tools / Max. speed

12 / 6000 n/rpm

Drive power rating (100% DC)

10 kW (AC)

Torque (100% DC)

28 Nm

Turret slide

Rapid traverse rate X- / Y- / Z-axis

30/10/30 m/min

Weight

Machine weight

7,760 kg
