Scantool 10

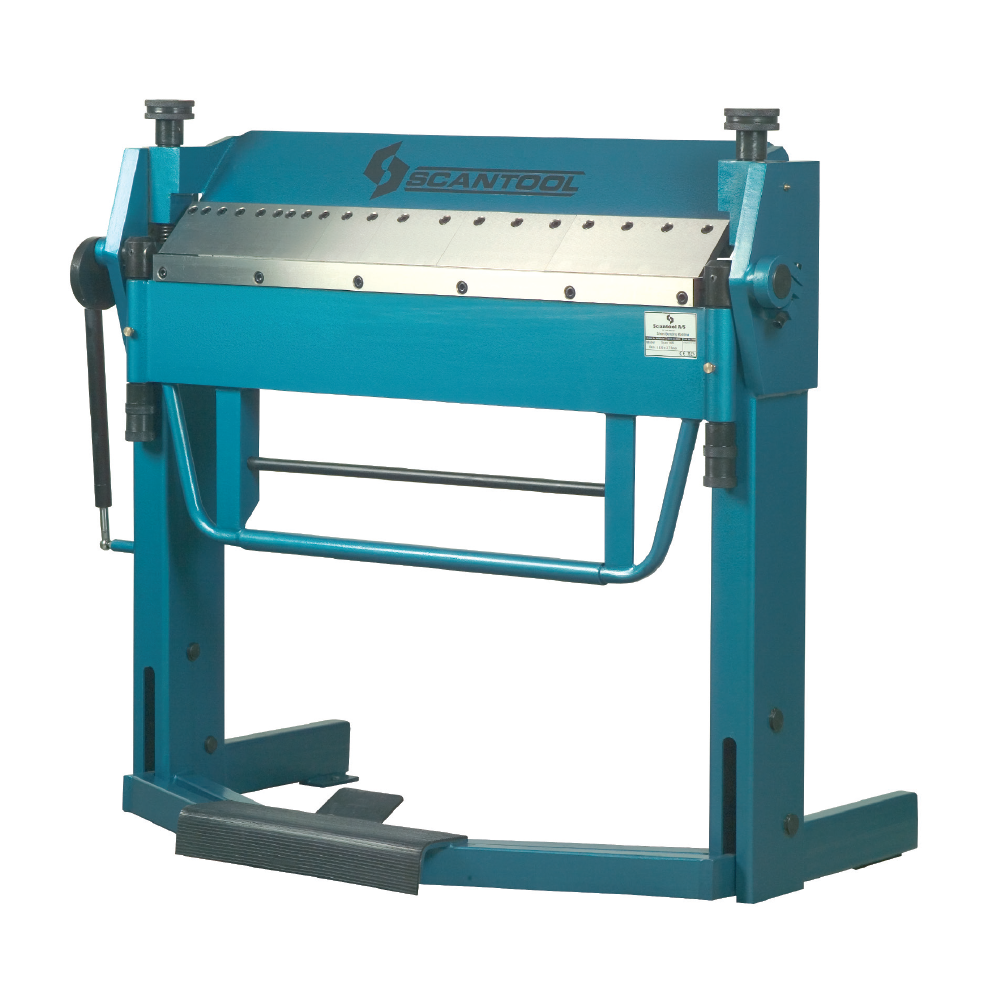

The SCANTOOL SCAN 10S & 13S are manufactured with foot operated upper beam to allow for a simple and fast hands-free operation.
The upper beam is fitted with a shapr nose segments for box and pan work. The segments can accommodate box profiles with a maximum edge height of 22 mm. The individual segments are mounted on a slide bar making it very easy to switch between standard straight folding and box and pan profiles.
Both models can convert from segments to low sharp nose blade or radius blade.
Accessories: Back gauge, radius blade R = 1,5 mm and R = 2,5 mm and ERGO unit.

SKU: 6.SC.C.10S Categories: , ,


Product Specifications

Without back gauge

Bending angle 135°
Capacity (mm) 1020×2,5
Machine height (mm) 1140
Machine length (mm) 1360
Machine width (mm) 800
Max. Opening (mm) 52
Net weight (kg) 310
Sheet thickness steel (mm) 2,5
Working length (mm) 1020
