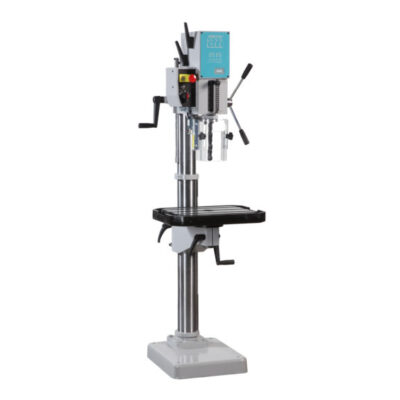

Arboga A2608 Pedestal Drill

Both Drill head and table arm are turn able 360° around the column and also adjustable. Working table is turn able 360° around its own center. Drill guard with micro switch is standard within the CE-area.

Arboga A 2608 – Manual feed.

Arboga A 2608 M – Automatic power feed to simplify the work for the operator. Hole in one!

Arboga A 2608 T – Manual feed. Machine is equipped with a top-motor, which is dust and waterproof according to IP-54 standard. Option: 120V 1-Phase and 230V 1-Phase.

Also available as bench models.

Arboga A 2608 B

Arboga A 2608 BM

Arboga A 2608 TB – Manual feed.

Description

The gear box is built according to our well known approved technique for highest torque.

Helical gears combined with steel gears against reinforced fiber gears ensure strong gear teeth’s, longer lifetime, low sound level and a more or less maintenance free gear box.

Standard Equipment

Safety catch in mechanism for positioning of drill head in column
Adjustable counter balance spring
Depth gauge in inches/mm
Built in drill ejector
13 mm drill chuck and 3 MT arbor
Helical gears for reduced noise

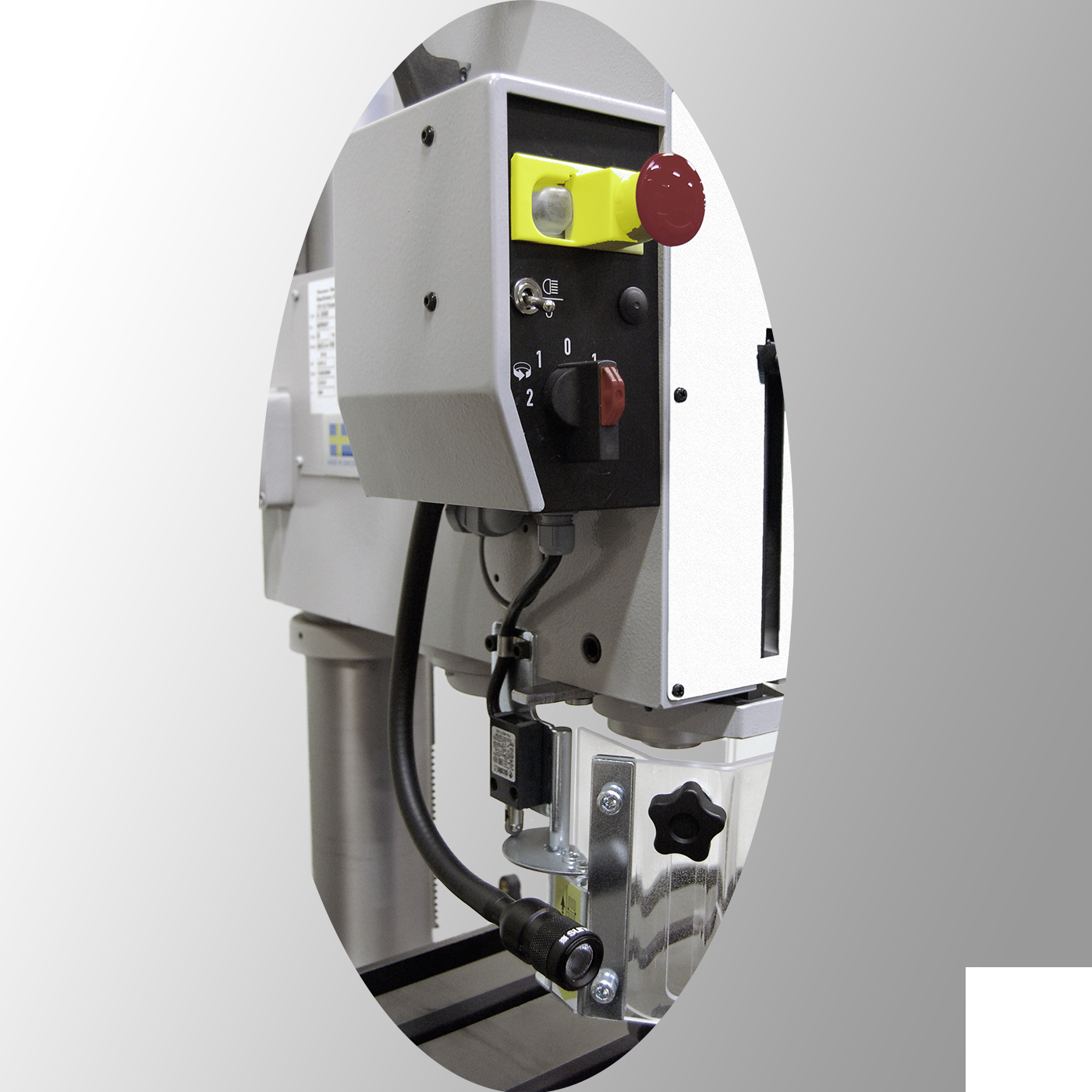

Thermal overload switch, no volt release and emergency stop
Chuck guard 25 mm – Interlocked

Technical Data

Distance from spindle centre to column 255 mm
Max. distance spindle nose to table 830 mm
Quill movement 130 mm
Diameter of column 100 mm
Size of table 500 x 400 mm .
Suitable for drills up to 25 mm Mild Steel / 28 mm Cast
Tapping capacity in steel M16 Mild Steel / M20 Cast
Morse taper no. 3 MT

Motor power by:
– 1400 rev./min. 50 Hz, 0.65 kW
– 2800 rev./min. 50 Hz, 0.90 kW

Spindle speeds at 50 Hz 105-210-350-445-700-890-1450-2900 rpm

Net weight 180 kg-pedestal A2608,, 190 kg-A2508M
Feed Rates 4 (A2608M) 0.1, 0.15, 0.22, 0.30 mm/rev
Max. height 1820 mm
