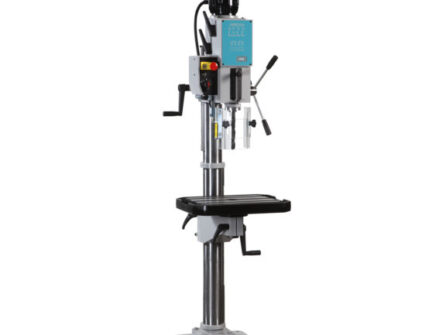

ARBOGA A4008 has a drilling capacity of 40mm. The gear box is built according to our experienced methods for highest possible torque. The drill head is fixed on top of the column. The table arm is adjustable 360° around the column and can be raised and lowered.
ARBOGA A4008M: When the set drill depth is reached, the spindle will automatically return to the starting point. The feed can also be interrupted manually. The feed gear box is provided with an automatic overload protection device, which intervenes, when the drill pressure is too high.
ARBOGA A4008ELM: Start / Stop of the automatic feed are handled by buttons at the top of the feed lever. Hand and automatic reversing for tapping are standard.
Chuck guard with micro switch is standard for machines within CE area.
The gear box is built according to our experienced methods for highest possible torque.
Helical gears combined with steel gears against reinforced fiber gears ensure strong gear teeth’s, longer lifetime, low sound level and a more or less maintenance free gear box.
Drilling capacity: 40 mm
Quill movement: 190 mm
Distance drill – column: 330 mm
