Bomar Workline 410.280 DGH

This semiautomatic bandsaw, designed for double-sided mitre cuts and for cutting material up to 280 mm in diameter, provides high quality at an affordable price. The excellent cutting power results from these features: a hardmetal band precision guide, an arm joint laid in slide bearings, a 27 mm high saw band, and a synchronous running brush for chips disposal.

Material clamping and arm downfeed are controlled hydraulically, material feed is controlled manually.

The whole work cycle is completed at the press of the Start button: the material is clamped, the saw band starts up, cutting is carried out, the arm is raised to the default position, and the vice is opened. After switching the machine to the manual mode, all functions may be controlled separately.

Thanks to a large angle scale located within the operator’s field of vision it is easy to set the required angle precisely.

The saw band speed is set on the ergonomic control panel located in the front of the machine. The basic equipment of the machine includes a frequency convertor that allows the band’s optimal speed to be set against the processed material within the 20-120 m/min range; this significantly increases both the saw band lifetime and the machine productivity.

Standard equipment of Workline semiautomatic machines includes automatic downfeed pressure regulation dependent on the resistance of the processed material.

Key features

Hardmetal saw band precision guide
Material clamping and arm downfeed are controlled hydraulically
Well-arranged angle scale
Saw band cleaning brush

Description

Cutting parameters


0°	280	410×280	280
45°R	280	310×150	270
60°R	210	205×100	190
45°L	280	330×100	280
60°L	220	225×100	210

Technical Specifications

Working mode:	manual
Machine type:	Horizontal bandsaw
Cut:	Mitre cut
Mitre cuts range:	-60° – 60°
Drive:	2,2 kW, 3×400 V/50 Hz
Saw band speed:	20 – 120 m/min.
Saw band dimensions:	3 800x27x0,9 mm
Material loading height:	756 mm
Shortest remnant length	60 mm

Machine dimensions

Length:	2 148 mm
Width:	1 070 mm
Height:	1 428 mm
Weight:	530 kg

Additional information

Feed	Manual DG, Hydraulic Semi-Automatic DG

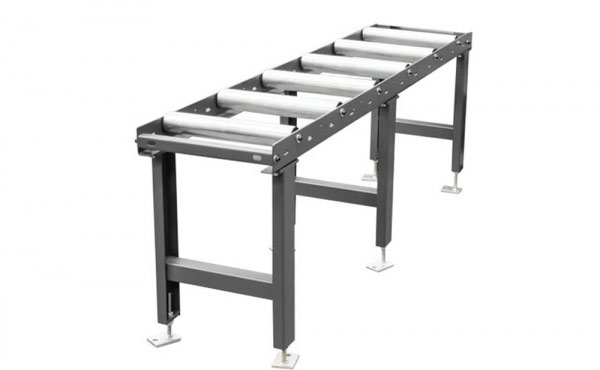

Handling System T

Highly flexible handling solution for feeding medium weight materials. With the bearing capacity up to 600 kg and a wide range of accessories and connection parts of BOMAR band saws, System T is an ideal partner for handling materials in your workshop. Thanks to the default lengths of 2 and 3 m, the roller tracks are flexible and may be adjusted to any environment.

Handling System X/XP

The new X/XP handling system offers unprecedented flexibility for tailoring a handling syste

m to individual needs and conditions. Load capacities and automation levels can be adjusted with perfect flexibility and modified at a later time. Besides the roll conveyor in a regular and propelled version, the X system comprises a rich array of options, from vertical rollers, to length measuring systems all the way to cross conveyor units and shifting devices. The load capacity can be customized by the number of rollers and support feet used. The roll conveyor’s feed profile even allows varying roller and foot distances on the same roll conveyor unit. When needed, additional rollers and/or support feet can be installed at any time.
