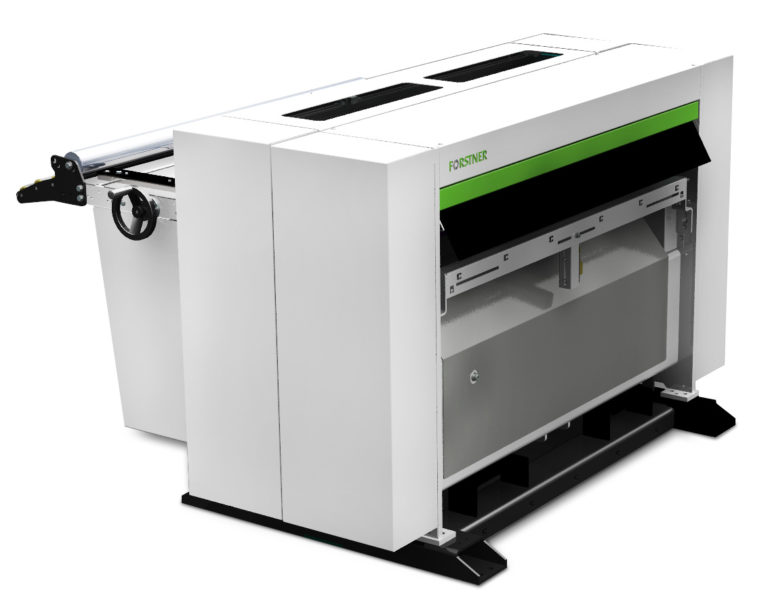

CIDAN FORSTNER NUSLIT CUT TO LENGTH LINE

Accuracy, precision and attention to detail makes the FORSTNER nuSLIT  Cut-to-Length Line the pinnacle of all-in-one slitting machines for any sheet metal workshop. Width settings, finished lengths, cylinder pressure, slitting cutter settings and engagement can all be adjusted from one convenient, easy-to-use control panel.

The nuSLIT slitting machine is at the forefront of finesse with the ability to handle multiple types of materials like copper, aluminum, zinc and even plastic sheeting. You’ll be able to work with any material, all without any creasing, slipping or twisting. Combined with automated 5 slitting knives and a Guillotine shear, the nuSLIT Cut-to-Length Line is perfect to ensure a smooth cutting motion for all your materials.

The control system can be upgraded and is compatible with nuIT automation technology, making your workshop as efficient as ever taking projects from production to implementation. The programmable split machine is a true dream for modern sheet metal machining as each function can be controlled over the operating control panel.

Key benefits of the nuSLIT:

  • High productivity and repeatability
  • Unparalleled slitting precision
  • Intuitive control system
  • Automation slitting compatibility
  • Eliminate slit width operator errors
  • Ready for full automation of coil service center to automated forming
SKU: Cidan-FORSTNER-NUSLIT Categories: ,

Description

Standard Features

  • Touch screen F3 control
  • Fully rubberized pinch rollers
  • 5 sets of slitting knives
  • Roller infeed table
  • Built in slitting shafts
  • Guillotine shear
  • Solid welded base frame to ensure accurate slits and cuts
  • Compatible with other CIDAN Machinery Group recoilers and The Base
  • 2 year parts and labor warranty

PROGRAMABLE ROLLER SHEAR FOR STEP CUTTING

Step cutting allows different lengths to be cut-to-length while slitting.

AUTOMATIC LABEL PRINTER

Prints automatically to each slit piece.

AUTOMATIC STRAIGHTENING WITH POWERED ROLLERS

When taking coil set out of there could be a slight mark left on the blank, where the straightening rolls stopped to cut-to-length. To eliminate this, we utilize CNC motorized vertical adjustment of Straightening rollers. We achieve this by having the straightening rollers move upward right before you cut-to-length. After the cut-to-length, the material will feed backward about 2-3 feet, then straightening rollers will come down to the proper height and remove coil set. This process is repeated until the batch job is completed. Sensitive material, for example gloss painted, soft material like Aluminum or Zinc, and mirrored stainless is important to have this feature.

FILM APPLICATOR FOR SENSITIVE MATERIAL

When coil reverses, the film needs to pull back, then reapply when coil moves forward.

Specifications

SPECIFICATIONS
Model Working Width Material Thickness Speed
  ” (mm) Steel  Stainless  Aluminum  ft/min (m/min)
nuSLIT 50″ (1270mm) 20 ga (1.25mm) 22 ga (0.75mm) 0.060″ (1.5mm) 85/115/145 ft/min (25.9/35.05/44.2m/min)
