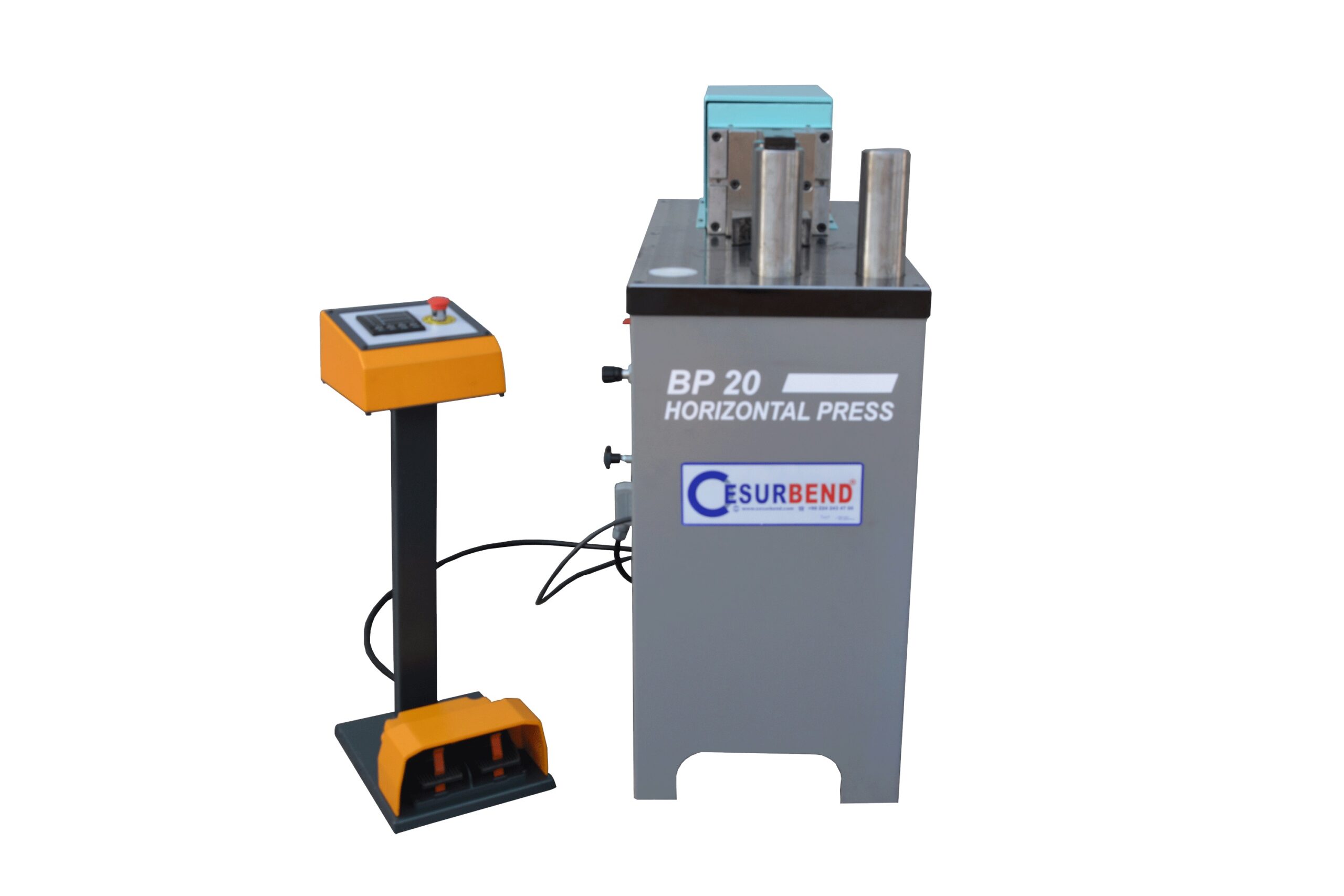

HP-20 Horizontal Press

SKU: CesurBend-HP-20 Categories: ,


Product Features

  • Hydraulically moving carriage of forged steel with double slides, suitably hardened, ground and protected by dust scrapers.
  • Moving beam slided on the table in rigid way.
  • Easy adjustable stroke distance from front side.
  • Working with foot pedal or two hand control.
  • Die holder pins made in alloy steel with rapid conical change, hardened and ground to obtain a strong lock.

Technical Details

Workbench dimensions (mm) 500×1000
Max. stroke of mobile punch (mm) 190
Bending Capacity (mm) 200
Working Speed (mm/sec.) 9
Hydraulic oil tank capacity (lt) 20
Noise level(db) 70
Working Pressure (ton) 20
Engine Power (kW) 2.2
Machine Height (mm) 900
Machine Weight (kg) 650
