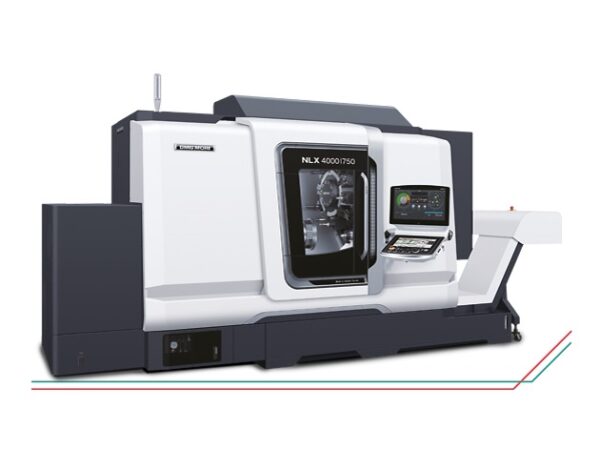

NLX 4000

Elaborate and Dynamic Parts Machining

Max. turning diameter
600 mm
Max. work piece length with a tailstock (can be machined)
1,584 mm
Max. chuck size
457 mm
Max spindle motor speed
2,000 rpm
Drive power rating (100% DC)
30 kW (AC)
Max. bar capacity diameter
117 mm
SKU: DMGMoriNLX4000 Categories: , , ,

Description

HIGHLIGHTS

High rigidity

  • Slideway area ratio (compared with conventional machine): 50% UP (X-axis) / 90% UP (Z-axis)
  • Large-diameter ball screws adopted
  • The largest through-spindle hole diameter in its class: 145 mm (5.7 in.) / 185 mm (7.3 in.)

Improved milling power

  • High-torque milling – maximum torque 100 N・m (73.8 ft・lbf) : 100 / 68 N・m (73.8 / 50.2 ft·lbf) <4 min / cont>
  • BMT (Built-in Motor Turret) Technologie

High precision

  • Thoroughly controlled thermal displacement: Coolant circulation inside the castings (750 type)
  • Positioning accuracy (C-axis): 6.8 sec.

Power-saving

  • Energy-saving setting and visualization of
  • energy-saving effect

AUTOMATION



Standard automation and customised solutions in the VERTICO design

Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:

For NLX 2500 + GX 10 T product video click here.

CONTROL & SOFTWARE

CELOS

Integrated digitization of the DMG MORI machines & the shop floor:

  • CELOS Machine: APP-based user interface with access to all production-related information
  • CELOS Manufacturing: 27 CELOS APPs for the optimal preparation & processing of orders
  • Digital Factory: Continuous digital workflows from planning to production & service

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

Work Area

Max. swing diameter

978 mm

Max. turning diameter

430 mm

Max. work piece length with a tailstock (can be machined)

3,123 mm

Max. work piece length with a tailstock (can be machined Type 700)

713 mm

Max. work piece length with a tailstock (can be machined Type 1250)

1,260 mm

Max. work piece length with a tailstock (can be machined Type 2000)

2,123 mm

Max. work piece length with a tailstock (can be machined Type 3000)

3,123 mm

Max. chuck size

305 mm

Main spindle

Max spindle motor speed

3,000 rpm

Drive power rating (100% DC)

25 kW (AC)

Torque (100% DC)

995 Nm

Max. bar capacity diameter

102 mm

Turret (standard)

Number of driven tools / Max. speed

12 / 10000 n/rpm

Turret slide

Rapid traverse rate X- / Y- / Z-axis

30/10/30 m/min

Weight

Machine weight

14,200 kg
