NLX 3000

Ultimate Performance for Parts Machining

Max. turning diameter                                                                                430 mm
Max. work piece length with a tailstock (can be machined)               3,123 mm
Max. chuck size                                                                                            305 mm
Max spindle motor speed                                                                          3,000 rpm
Drive power rating (100% DC)                                                                 25 kW (AC)
Max. bar capacity diameter                                                                       102 mm
SKU: DMGMoriNLX3000 Categories: , , ,

Description

HIGHLIGHTS

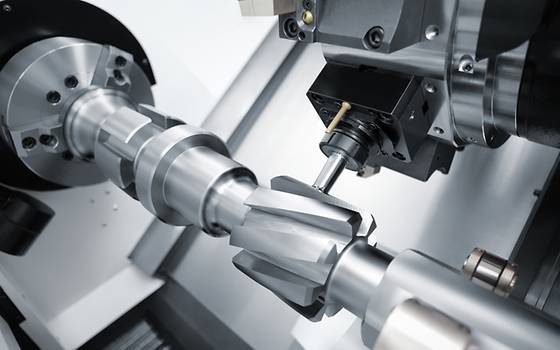

Improved milling power

  • BMT (Built-in Motor Turret) installed in the turret
  • High-speed rotary tool spindle: 10,000 min-1
  • Max. rotary tool spindle torque: 40 N·m (29.5 ft·lbf)<3 min>, 100 N·m (73.8 ft·lbf) <4 min> (2000 type / 3000 type)

High precision

  • Thoroughly controlled thermal displacement: Coolant circulation in machine body as standard (700 type / 1250 type)
  • Machining precision improved by heat-controlling structure

High rigidity

  • Slideways on X-, Z-, and Y-axis for higher vibration damping performance and dynamic rigidity

Operability

  • Digital tailstock driven by a servo motor (700 type / 1250 type)
  • Programmable tailstock (2000 type / 3000 type)

AUTOMATION



Standard automation and customised solutions in the VERTICO design

Automation is a key element of digital production. Every DMG MORI machine can be upgraded with standard automation or with a customised automation solution for flexible manufacturing systems:

For NLX 2500 + GX 10 T product video click here.

CONTROL & SOFTWARE

CELOS

Integrated digitization of the DMG MORI machines & the shop floor:

  • CELOS Machine: APP-based user interface with access to all production-related information
  • CELOS Manufacturing: 27 CELOS APPs for the optimal preparation & processing of orders
  • Digital Factory: Continuous digital workflows from planning to production & service

Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

Work Area

Max. swing diameter

978 mm

Max. turning diameter

430 mm

Max. work piece length with a tailstock (can be machined)

3,123 mm

Max. work piece length with a tailstock (can be machined Type 700)

713 mm

Max. work piece length with a tailstock (can be machined Type 1250)

1,260 mm

Max. work piece length with a tailstock (can be machined Type 2000)

2,123 mm

Max. work piece length with a tailstock (can be machined Type 3000)

3,123 mm

Max. chuck size

305 mm

Main spindle

Max spindle motor speed

3,000 rpm

Drive power rating (100% DC)

25 kW (AC)

Torque (100% DC)

995 Nm

Max. bar capacity diameter

102 mm

Turret (standard)

Number of driven tools / Max. speed

12 / 10000 n/rpm

Turret slide

Rapid traverse rate X- / Y- / Z-axis

30/10/30 m/min

Weight

Machine weight

14,200 kg
