Scantool 150 RB/RBX

Scantool 75 and 150 RB/RBX are, first andforemost, pipe notchers which grind pipes of all types (round, square, solid) and with diameters of between 17 mm and 100 mm.
However, the RB and RBX models are more than just efficient pipe grinders.
They can be converted into a normal belt sander in just minutes when all pipe grinding tasks are finished. They can then be used for standard grinding tasks.
If you need to grind the pipes with a centreless grinder, you can attach the centreless unit onto the 75 model: 3 grinding processes in one machine.
Model RBX is delivered complete with built-in exhaust system.

SKU: Scantool 150 RB/RBX Categories: ,

Description

Product Specifications



Product Specifications

On Pedestal

Without exhaust

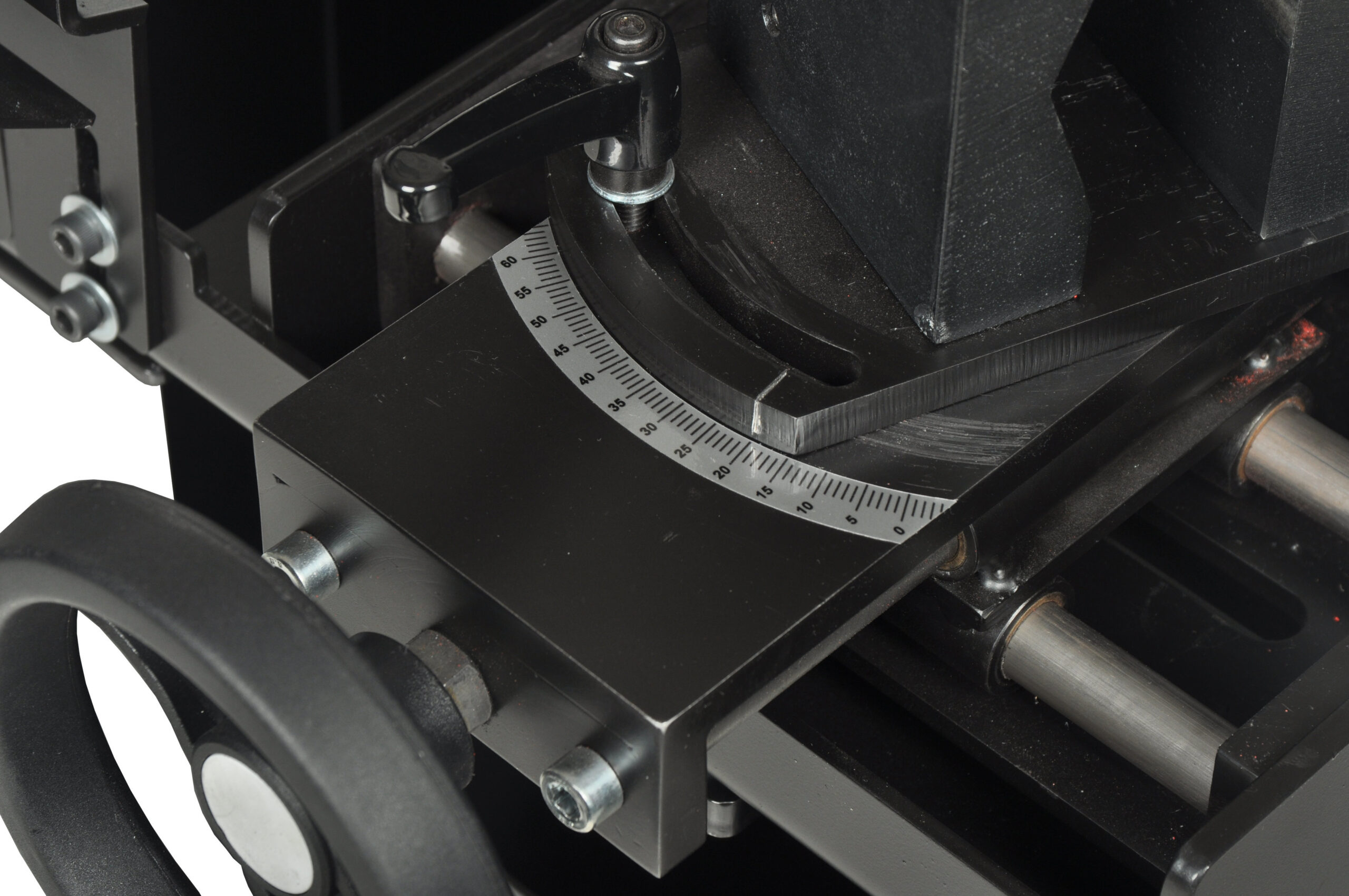

Grinding angles 0-60°
Grinding belt (mm) 150×2250 / 150×2000
Grinding table (mm) 150×605
Machine height (mm) 1020
Machine length (mm) 1350
Machine width (mm) 570
Motor (HP) 4,8
Net weight (kg) 140
Number of spindle speeds 1
Pipe dimension (ø mm) 17-100
Rpm 2800/3300
Saw speed (m/min) 30
Voltage 3×400/440V-50/60 Hz
