Description
All castings are properly stabilized and stress relieved.
Bed ways are hardened & ground to min. HS-70.
Turcite B coating between the bed and carriage.
Extremely low noise level.
Foot brake pedal provided.
Built-in coolant pump & fitting provided.
CSS (constant surface speed control) on request for E.V.S. model
Wider bed way which give absorbs vibration.
Standard Equipment
- CE Mark
- 9″ 3 Jaw Chuck
- 10″ 4 Jaw Chuck
- Chuck safety guard interlocked
- Travelling and Fixed steady
- Full length rear splash guard
- Halogen work light
- Coolant system
- Mounting pads
- Quick change toolpost
- Toolpost Safety Guard
- Leadscrew cover
- Single carriage stop
- Instruction and spare parts manual

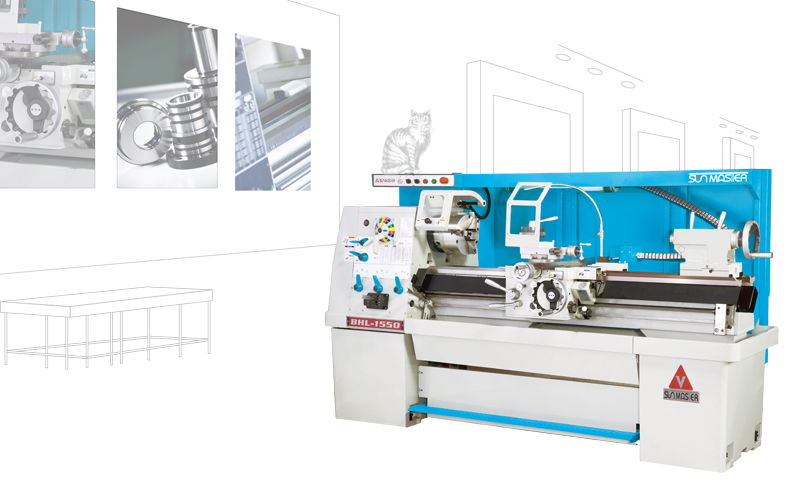

| MODEL | BHL-1550 | BHL-1550V | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity | Height of centers | 190mm (7.48″) | ||||||||||
| Swing over bed | O380mm (14.96″) | |||||||||||
| Swing in gap | O610mm (24″) | |||||||||||
| Swing over cross slide | O238mm (9.37″) | |||||||||||
| Distance between centers | 1250mm (50″) | |||||||||||
| Width of bed | 280mm (11″) | |||||||||||
| Gap width in front faceplate | 265mm (10.43″) | |||||||||||
| Headstock and Main Spindle |
Spindle nose, internal taper | D1-6, MT. No.6 | ||||||||||
| Spindle center sleeve | MT. No.6 x MT. No.4 | |||||||||||
| Spindle bore | O56mm (2.2″) | |||||||||||
| Spindle speed: Gear steps / Range |
16 steps / 25~2000 R.P.M. | 4 steps / | ||||||||||
| Green | 25 | 80 | 260 | 840 | L | 22~72 R.P.M. | ||||||
| Yellow | 33 | 108 | 350 | 1120 | M | 70~235 R.P.M.. | ||||||
| Red | 45 | 140 | 470 | 1500 | MH | 235~780 R.P.M. | ||||||
| Blue | 60 | 190 | 625 | 2000 | H | 753~2500 R.P.M. | ||||||
| Disc clutch for Forward / Reverse | In nitely variable | |||||||||||
| Carriage | Length on bed / Width of carriage | 484mm (19.05″) / 450mm (17.71″) | ||||||||||
| Cross slide travel | 235mm (9.25″) | |||||||||||
| Top slide travel | 122mm (4.8″) | |||||||||||
| Threads and Feeds | Whitworth threads: Kinds / Range | 45 Kinds / 2~72 T.P.I. | ||||||||||
| Metric threads: Kinds / Range | 39 Kinds / 0.2~14 mm | |||||||||||
| D.P. threads: Kinds / Range | 21 Kinds / 8~44 D.P. | |||||||||||
| M.P. threads: Kinds / Range | 18 Kinds / 0.3~3.5 M.P. | |||||||||||
| Longitudinal feeds | 0.04~1.0 (0.0015″~0.04″) | |||||||||||
| Cross feeds | 0.02~0.5 (0.00075″~0.02″) | |||||||||||
| Tailstock | Quill diameter | O59mm (2.322″) | ||||||||||
| Quill travel | 127 mm (5″) | |||||||||||
| Taper of center | MT. No.4 | |||||||||||
| Motor | Main spindle | 7.5HP | AC 5.5kW (7.5HP), Inverter | |||||||||
| Forced lubrication for HD. | — | 1/4 HP | ||||||||||
| Coolant pump | 1/8 HP | |||||||||||
| Measurement | Weight (Net / Gross) Approx. | 1450kgs / 1610kgs | ||||||||||
| Packing size | Length | 2580mm (101.58″) | ||||||||||
| Width x Height | Width 1120mm (44.1″) x Height 1900mm (74.8??) | |||||||||||
