TruLaser Tube 5000 Fiber

The fastest tube cutting machine in the world

The TruLaser Tube 5000 fiber takes advantage of the strengths of solid-state lasers in a way that no other machine ever has before. For you as a user, this means short processing times for a large range of possible tubes and profiles.



For Technical Data Click Here

SKU: TruLaserTube5000 Categories: ,

Description

Significantly reduced part times

With RapidCut, the high feed rates of the solid-state laser come into their own even on smaller contours.

Optimal access to the machine

Thanks to its open concept, the TruLaser Tube 5000 fiber offers optimum access.

Clamping without the need for retooling

With the clamping system of the TruLaser Tube 5000 fiber, tubes can be manufactured across the entire clamping range without the need for retooling.

Optimum cutting result

The TruDisk solid-state laser and high-quality cutting data produce the best possible results.

High-quality bevel cuts

The bevel cutting option enables high-quality bevel cuts of up to 45°.

Excellent process reliability

The state-of-the-art sensor system ensures your entire machining process runs smoothly.

Integration of subsequent processes

Cut out another work step: The TruLaser Tube 5000 fiber taps threads.

Autonomy

Smart profile detection

With smart profile detection, you can even load profiles with challenging geometries automatically. Click Here for product video.

SeamLine Tube

SeamLine Tube identifies weld seams or markings in order to align each tube correctly on the machine. As an option, the function can scan the inside of the tube. Click here for product video.

Productivity

RapidCut

With RapidCut, the high feed rates of the solid-state laser come into their own even on smaller contours. Particularly on thinner materials this is a huge productivity advantage for your production.

Expand your processing spectrum

Bevel cuts of up to 45 degrees

You can expand your range of parts with high-quality bevel cuts of up to 45°.

Technology package for tapping

As an option, the TruLaser Tube 5000 fiber integrates a process step by tapping threads. You have the choice, because you can insert a variety of tools for tapping threads in the standardized tool adapter.

Clamping system for round tubes up to a diameter of 170 mm

Produce with even more flexibility: With the new clamping technology, you have even more freedom in terms of the outer circle of round tubes.

Process reliability and operator support

Single-cutting-head strategy

With the single-cutting-head strategy, you can process multiple material types and thicknesses without changing the cutting head.

Single-cutting-head strategy

With the single-cutting-head strategy, you can process multiple material types and thicknesses without changing the cutting head.

Condition Guide

One glance is enough: Due to the new Condition Guide function, you are always informed about the condition of your machine. A traffic light system shows the status of important elements which influence the cutting capability of the machine. Condition Guide will give you recommendations for action as required. Process diagrams facilitate forecasting as to when action may need to be taken. Maintenance work can therefore be planned efficiently.

MobileControl app

With the MobileControl app, you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. The app enables you to call up different machine information at different places in the working environment of the machine, such as the tube storage, or to change the program.

Magnetic coupling

The magnetic coupling with bellows protects the cutting head. In the event of a collision, the cutting head deflects, which prevents structural damage. It can then be moved manually into the starting position again. This means that production can be resumed after a short time.

Dot Matrix Code

Fast and process reliable – the right way to label parts with a standardized 2D industry code using a laser.

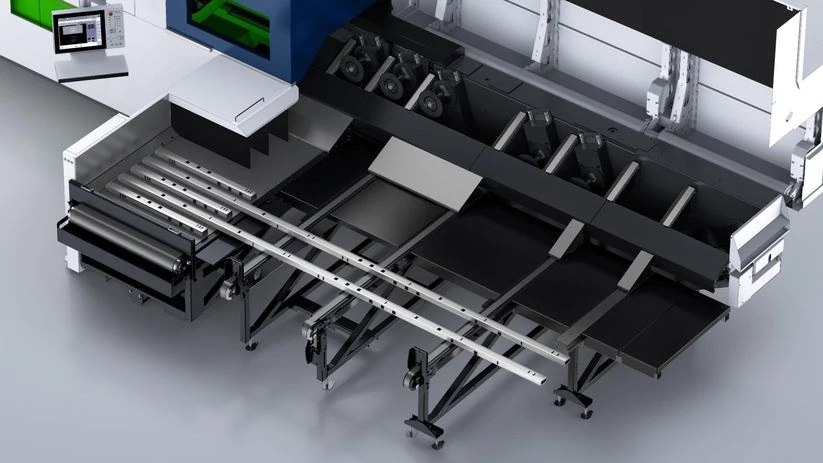

Conveyor tables

Conveyor tables at an ergonomic height make it easier to unload tubes and profiles. They also serve as a practical material buffer.

Quality

FocusLine

No more adjustments by hand: the FocusLine control mechanism keeps the focal position of the laser constant and automatically adapts it to the material.

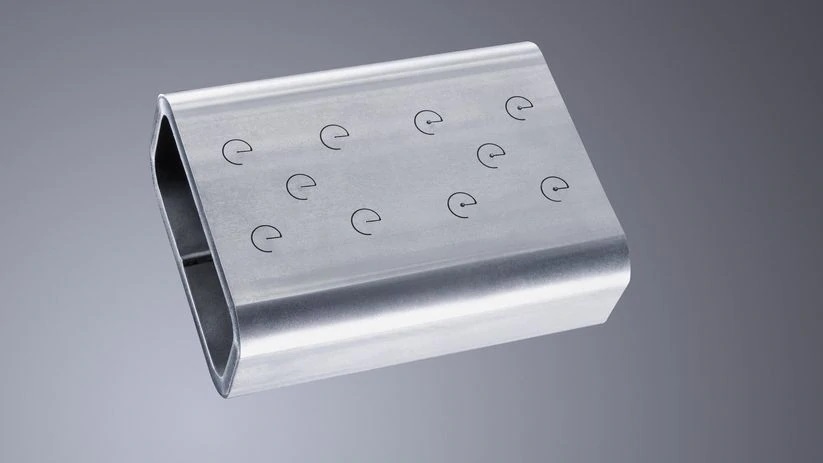

PierceLine

PierceLine controls and monitors the piercing process. The piercing process is ended as soon as the material is completely cut through. This leads to more accurate results and shorter processing times.
