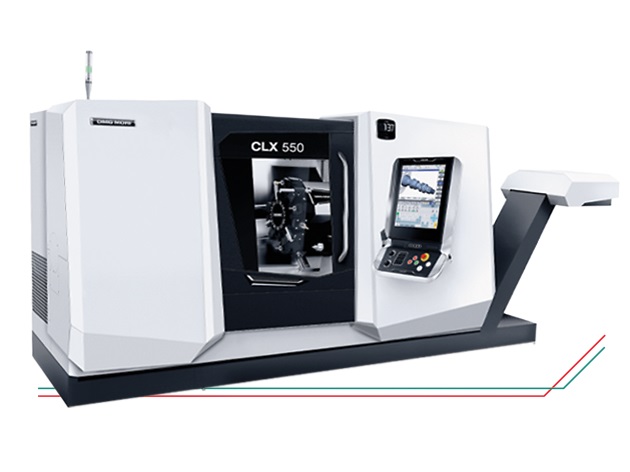

Complete machining of complex parts thanks to sub spindle and Y-axis
- Highly dynamic spindle drive 16,5 kW (40% DC) and 168 Nm (40% DC) with max. speed up to 5.000 rpm
- sub spindle as integrated motor spindle ISM 36 with power 16,2 kW (40% DC), 62 Nm (40% DC) and max. speed up to 5.000 rpm with the possibility for rear-face machining.
- Y axis with travel range ± 40 mm for superior milling operations, i.e. for complete lateral surface machining
More efficiency for machining with a bar feeder
- Bar capacity ø51 mm in standard (ø65 as an option)
- Optional part catcher for parts up to ø65 x 200 mm and weight 3 kg
- Optional robot interface according to DMG MORI standard compatible with most bar feeders
Compact design with large working area for the machining of customized parts
- Machining of parts with diameter up to ø320 mm
- Travel in Z axis 830 mm
- Small foot print 6,7 m2
Direct measuring system from now on in standard
IoTconnector for digitized and connected production processes
- DMG MORI NETservice and MESSENGER preinstalled
- Specially preconfigured for your machine prior to delivery
- Integrated firewall with automatic updates guarantees maximum protection
3D controls with the unique 19″ SLIMline multi-touch control panel and SIEMENS or 19″ SLIMline touch control panel and FANUC.
- Create your own individual solution!
- 19″ DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation
- 19″ DMG MORI SLIMline touch control panel and FANUC for 3D simulation with easy contour verification
- DMG MORI SMARTkey: Personalized with 8 GB additional storage
