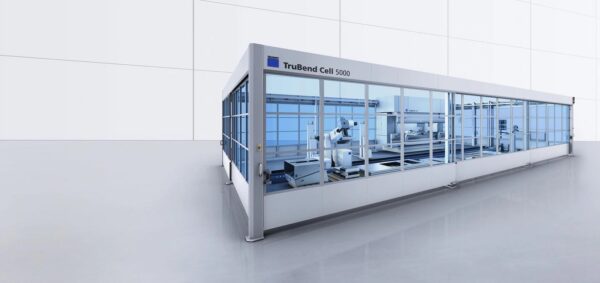

TruBend Cell 5000

Productive universal bending cell

Easy programming, fast automated bending: The TruBend Cell 5000 is the perfect solution for all those who value productive and flexible automation, for the widest possible range of parts. The quality remains consistently high. With the newest series of the bending machine TruBend 5000, the bending cell is state of the art, for example in the areas of programming and angle measurement. Select the bending machine and BendMaster according to your individual range of components. You also have maximum freedom in the design of the material flow using conveyor belts and pallet conveyors.

  • Perfectly programmed – You will love the programming system TecZone Bend – it is extremely fast and easy to use.
  • Wide range of components – Process small and large parts weighing up to 100 kg – thanks to the gripper and vacuum gripping technology
  • Precise angles – First part, perfect part – thanks to ACB Laser and ACB Wireless
  • Twice as good – BendMaster 60 and BendMaster 150: the right automation solution for every range of parts
  • Saves time – The automatic gripper change means you always have the right gripper
  • Reliable material handling – Thanks to the sheet sensor for fine position recognition, the gripper picks up the blank in the correct position.
SKU: TruBendcenter5000 Categories: ,

Description

Carrying capacity of 150 kg with the BendMaster (150)

Carrying capacity of 60 kg with the BendMaster (60)

Sheet sensor for accurate position detection

Sheet sensors detect the precise position and guarantee that components are recorded reliably. An additional centering station is no longer necessary.

Technical Data



Applications

TruBend Cell 5000 with vacuum gripper

For large parts, TRUMPF offers numerous grippers with vacuum technology, including multiple-circuit suction cups that can be individually controlled and multi-grippers that can be individually adjusted.

TruBend Cell 5000 with pivoted-jaw gripper

The pivoted-jaw gripper enables the automated bending of small components. Its linear and rotary axes reduce time-consuming regripping.

Equipment



Speed

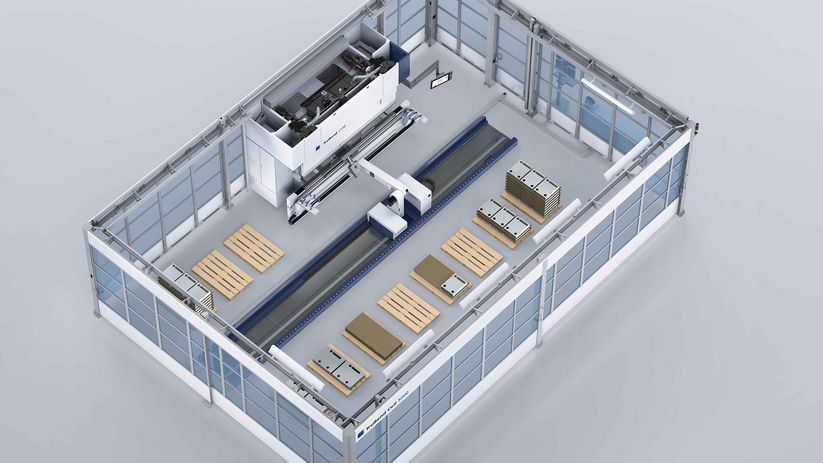

Gripper changing console

The console enables autonomous gripper changes as well as the automatic execution of various orders, all without manual intervention.

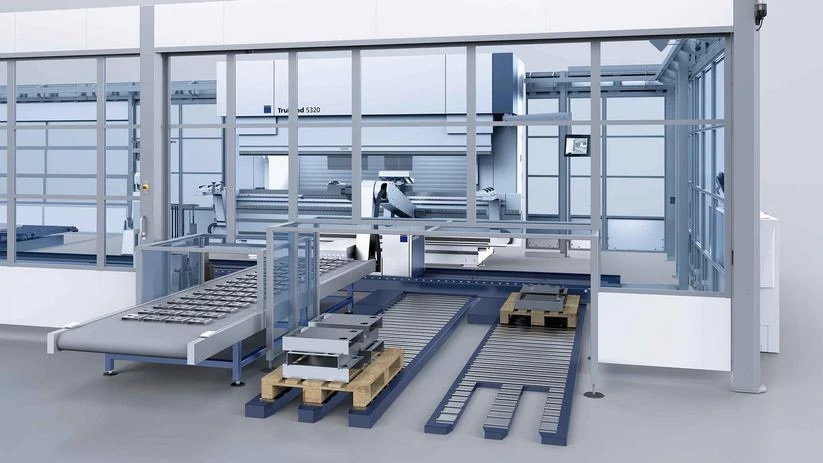

Conveyor belt

The conveyor belt removes small parts that cannot be stacked.

Pallet conveyor

The pallet conveyor loads blanks or unloads finished workpieces without interrupting the bending operation.

Sheet removal station

The sheet removal station can separate and produce up to four component types parallel to production in a single operation.

Precision

ACB Wireless and ACB Laser angle measuring systems

You can achieve consistently precise angles using the tried-and-tested ACB Wireless and ACB Laser angle measuring systems – without any manual intervention.

6-axis backgauge sensor system

The sensor system on the 4-axis or 6-axis backgauge accurately positions your components.

Customisable

Lane

The length of the floor lane can be chosen freely. This ensures there is enough space for blanks and finished parts.

BendMaster

With the BendMaster (60) and BendMaster (150), you always have the right automation solution for every range of parts.
