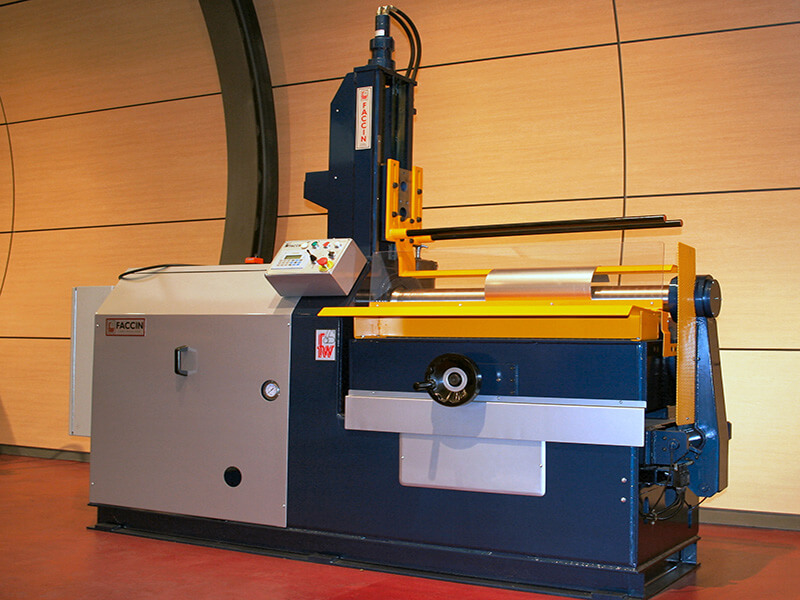

Faccin 2 Rolls Plate Roll HCU

Productivity, speed and precision: HCU is an innovative design 2 roll bending roll model, made with a special polyurethane roll and designed to roll thin plates with high productivity. The HCU series includes bending rolls with automation for an average rolling of 180 pieces per hour, reaching a peak of over 300 pieces per hour in special versions. HCU is ideal to roll plates between 500 and 2000 mm (20” – 80”) long with thickness from 0.2 to 5 mm (.008” – .197”), achieving bending diameters of even less than 80 mm (3”).

SKU: HCU Categories: ,


The HCU version 2-roll bending roll designed, built and marketed by Faccin features a special construction system combined with a solid oversized structure which assures absolute precision and reliability, greater simplicity of the plate rolling process and maximum quality of the rolled product. Every bending roll of Faccin’s HCU series is configured with polyurethane roll which, by exerting dynamic pressure, speeds up the plate forming process, assuring the straight end of the produced rolls is removed and greatly simplifying the prebending-rolling-prebending sequences typical of 3-roll or 4-roll bending rolls. Furthermore, the exclusive hydro-mechanical roll lifting system (RGS) assures positioning repeatability and constant working pressures.

Faccin’s HCU series bending rolls with automation assure achieving precise tolerances with very fast processing times. Therefore they are ideal for bending thin plates with thickness between 0.2 and 5 mm and width from 500 to 2000 mm, achieving bending diameter of even less than 80 mm. Faccin’s HCU bending rolls are therefore ideal for mass production of cylinders and tanks.

In the HCU Standard version, Faccin’s 2-roll bending roll  assures productivity greater than 180-200 pieces/hour while peaks of 300 pieces/hour may be reached with model HCU/S. Also, the HCU Standard bending roll version is a fully automatic machine and therefore does not require any manpower. Faccin’s HCU 2-roll bending roll models are the best choice for anyone seeking high speed rolling machines able to assure high productivity and maximum precision in forming.

Standard equipment:

  • Lower roll in polyurethane for perfect prebending
  • Automatic processing cycle (about 20 seconds/piece)
  • Special lower roll lifting system
  • Standard roll for minimum diameter
  • Siemens Numerical Control for automatic cycle control
  • Automatic release opening
  • Lubrication circuit
  • Emergency button
  • Emergency barrier around the machine
  • CE certified machine

Optional features:

  • Different sized chuck tubes
  • Chuck tube support
  • Central cylinder support
  • Automatic working pressure adjustment
  • Interchangeable rolls
  • Automatic sheet loader
  • Automatic feeding and centering tables
  • Programmable motorised backing
  • Automatic cylinder ejector
  • Automatic welding systems
