Initial Pinch Plate Roll ASI

Reliability, rolling power and cost-effectiveness: ASI is the initial pinch 3-roll bending roll model designed for high quality cylinder rolling. Thanks to asymmetric geometry in moving rolls, ASI delivers a superior level of rolling. Durable construction for maximum safety, self-supporting frame for placement on any surface. ASI is ideal to bend plates of thickness between 1 and 9 mm and width between 1000 and 3000 mm (40” – 120”).

SKU: ASI Categories: ,


The initial pinch bending roll model of the ASI series is the best solution for bending plates with thickness between 1 mm and 9 mm and width from 1000 mm to 3000 mm. The reliability of the ASI series is guaranteed by its solid electro-welded structure, oversized and assembled on steel rods. In addition, asymmetric geometry in the roll movement featured by the 3-roll bending rolls of the series assures optimal traction and prevents slipping of thin plates during pre-bending: the side roll moves on a linear guide that bends the material close to the pinching point, thus assuring a high quality result comparable to that obtained with more expensive models of 4-rolls plate bending rolls.

ASI asymmetrical bending rolls assure ease of use thanks to the foot control that allows a single operator to fully control all stages, from plate feeding, to pre-bending and bending operations.

ASI asymmetric initial pinch bending roll models can be fitted with rolls for profiles and rolls for tubes. Furthermore, all bending machines of the series are supplied as standard with roll shaft extension, which makes it possible to bend profiles. Thanks to the stiff self-supporting frame, ASI 3-roll bending rolls designed, manufactured and sold by Faccin can be placed securely on any type of surface. Faccin’s ASI series asymmetric bending rolls are the best solution to roll cylinders, assuring the highest performance against a minimum initial investment.

Standard equipment:

  • Two motorised rolls
  • Induction hardened rolls
  • Polished roll surface
  • Motorised pre-bending and bending
  • Bending roll tilt
  • Rolls with extensions for bending profiles
  • Mobile pedal controls
  • Emergency barrier around the machine
  • CE certified machine

Optional features:

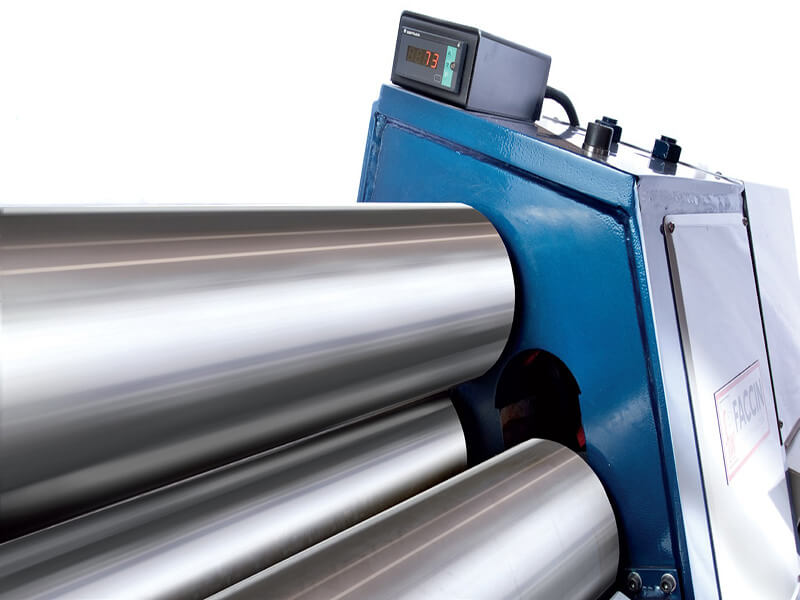

  • Digital readouts for roll position
  • Conical device
  • Painting with special colours
  • Profile bending rings
  • Numerical controls
  • Version with vertical rolls
  • Version with corrugated rolls
